Castle Creations

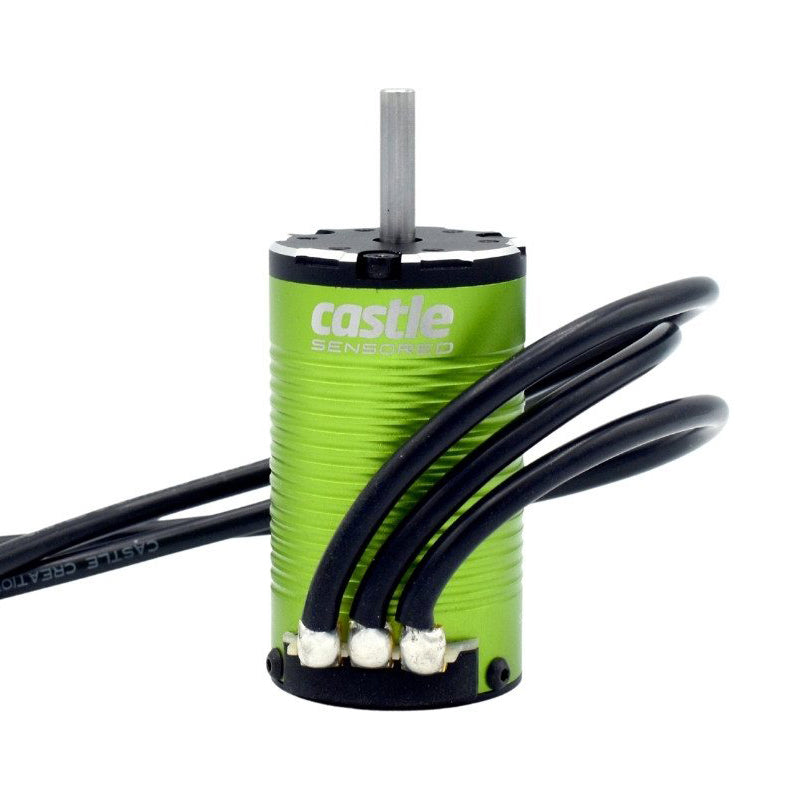

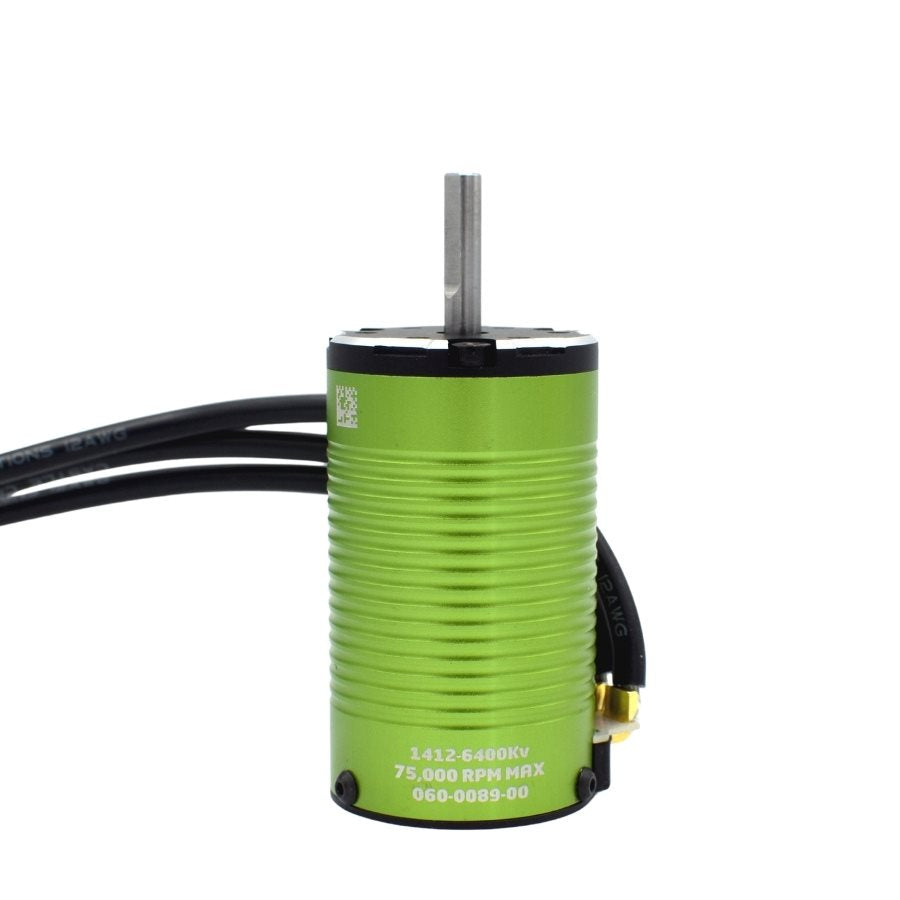

Sensored 1412-6400KV 4-Pole Brushless Motor

Sensored 1412-6400KV 4-Pole Brushless Motor

Regular price $134.95 USD
Regular price $165.95 USD Sale price $134.95 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

The 1412-6400kv motor is a very high torque, high wattage, mid-RPM motor designed for 2s no prep Street Eliminator racing.

Castle went with a slightly different approach than current motors on the market. Most no prep motors are standard 540 size with very high kv (low turn). These motors rely on high RPM and low torque to push the car down the track (think turbo charged 4 cylinder). The 1412 is longer than most drag motors, which provides significantly more torque, acceleration, and cooler temps (think American Muscle). This results in a high horsepower, snappy, cool running motor. Your final drive ratio will need to be decreased (larger pinion/smaller spur) to get the RPMs up for top speed; due to the size of the motor it will take just about any gearing and CHEAT timing you can throw at it.

They beefed up the design over a standard 14xx series motor to handle the high demands of drag racing. It uses a 5mm output shaft, 10AWG battery wires and 6.5mm bullets. Due to the high power nature of this motor it is highly recommended to use a 1/8th scale size ESC or larger. The 1/8th Mamba Monster X and 1/6th scale Mamba Monster X 8s are great pairings with this motor.
