Arrma GRANITE 4x4 3s Brushless BLX100 ESC Speed Control senton typhon ARA4302V3

PRODUCT DESCRIPTION

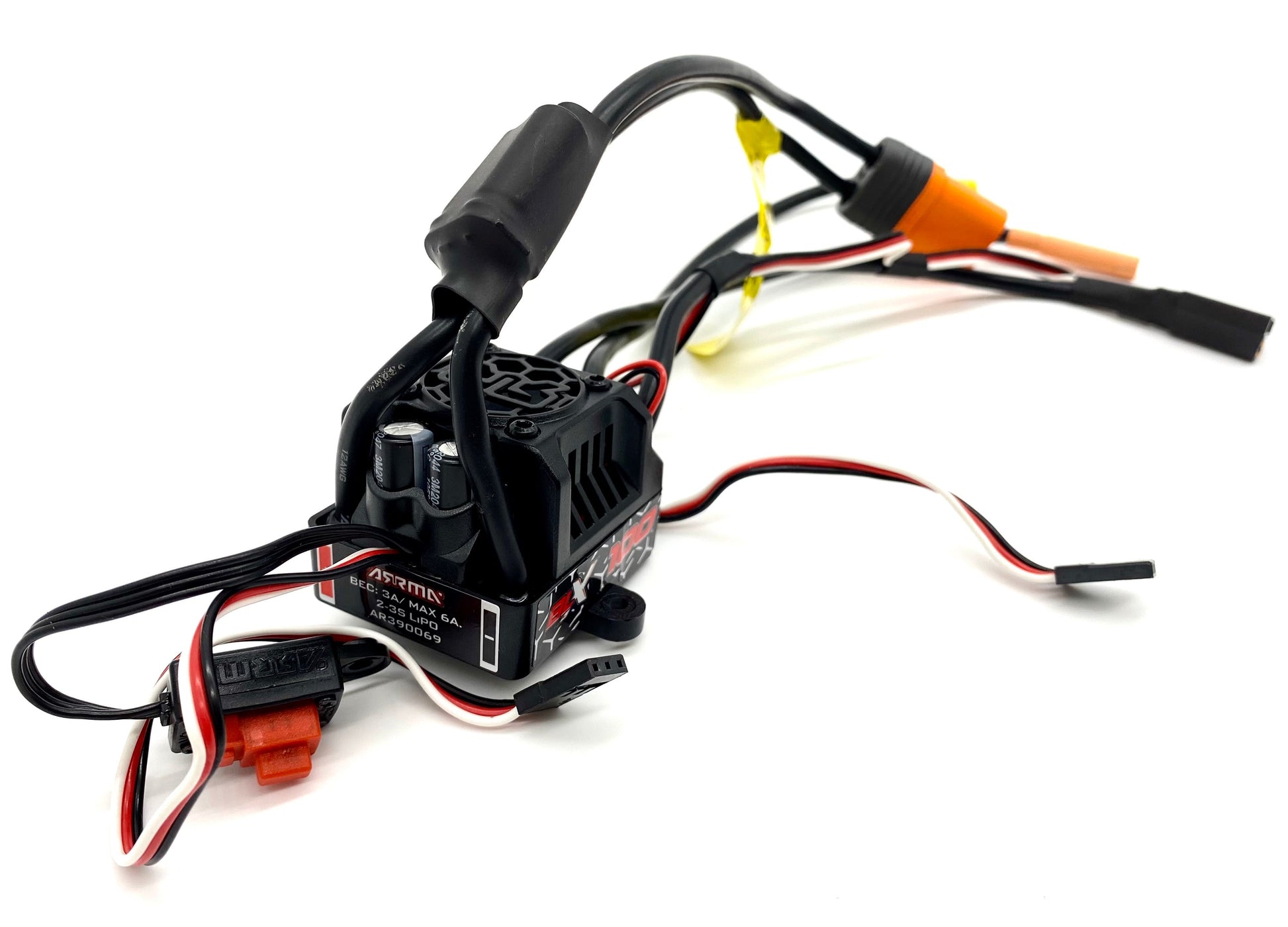

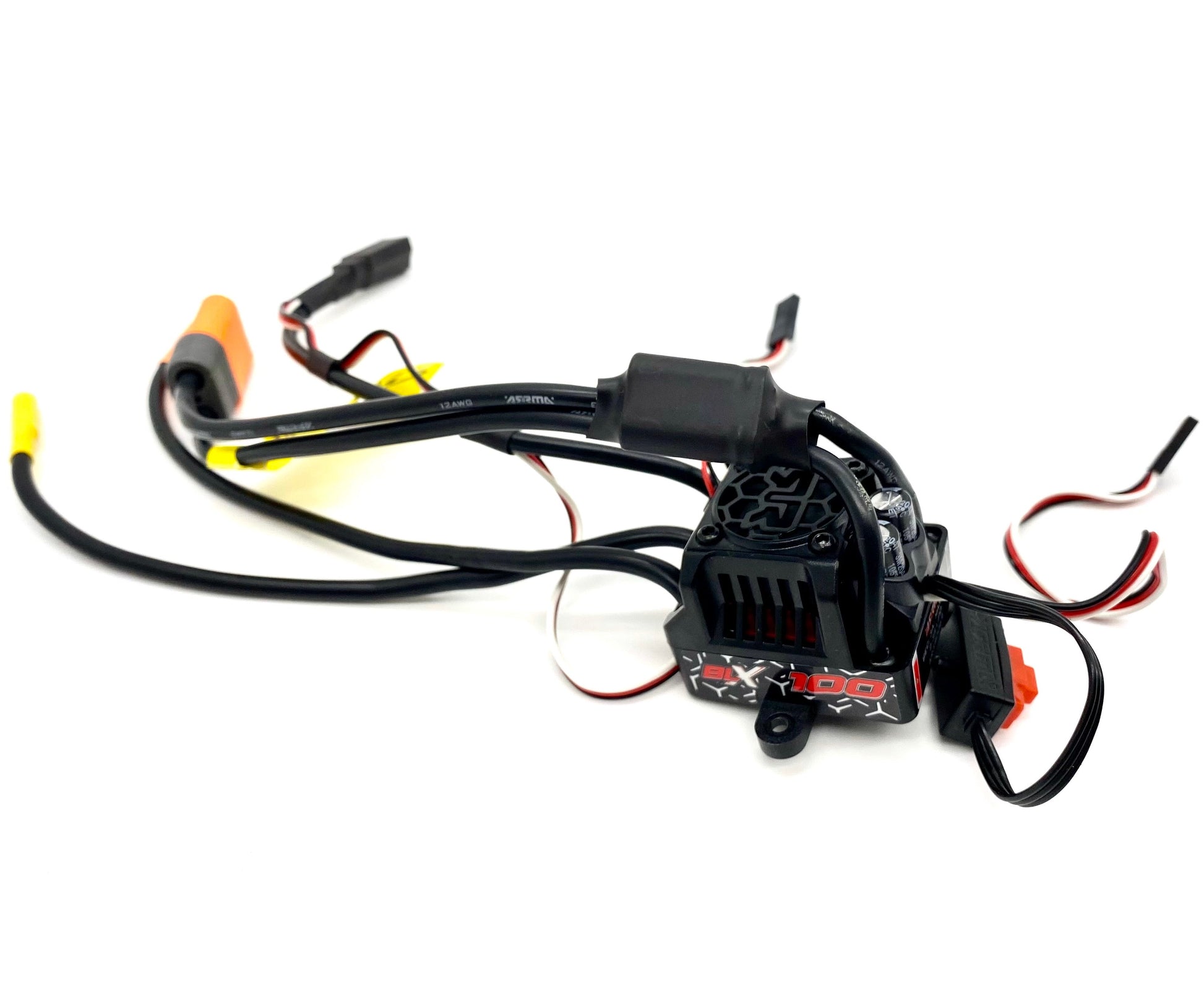

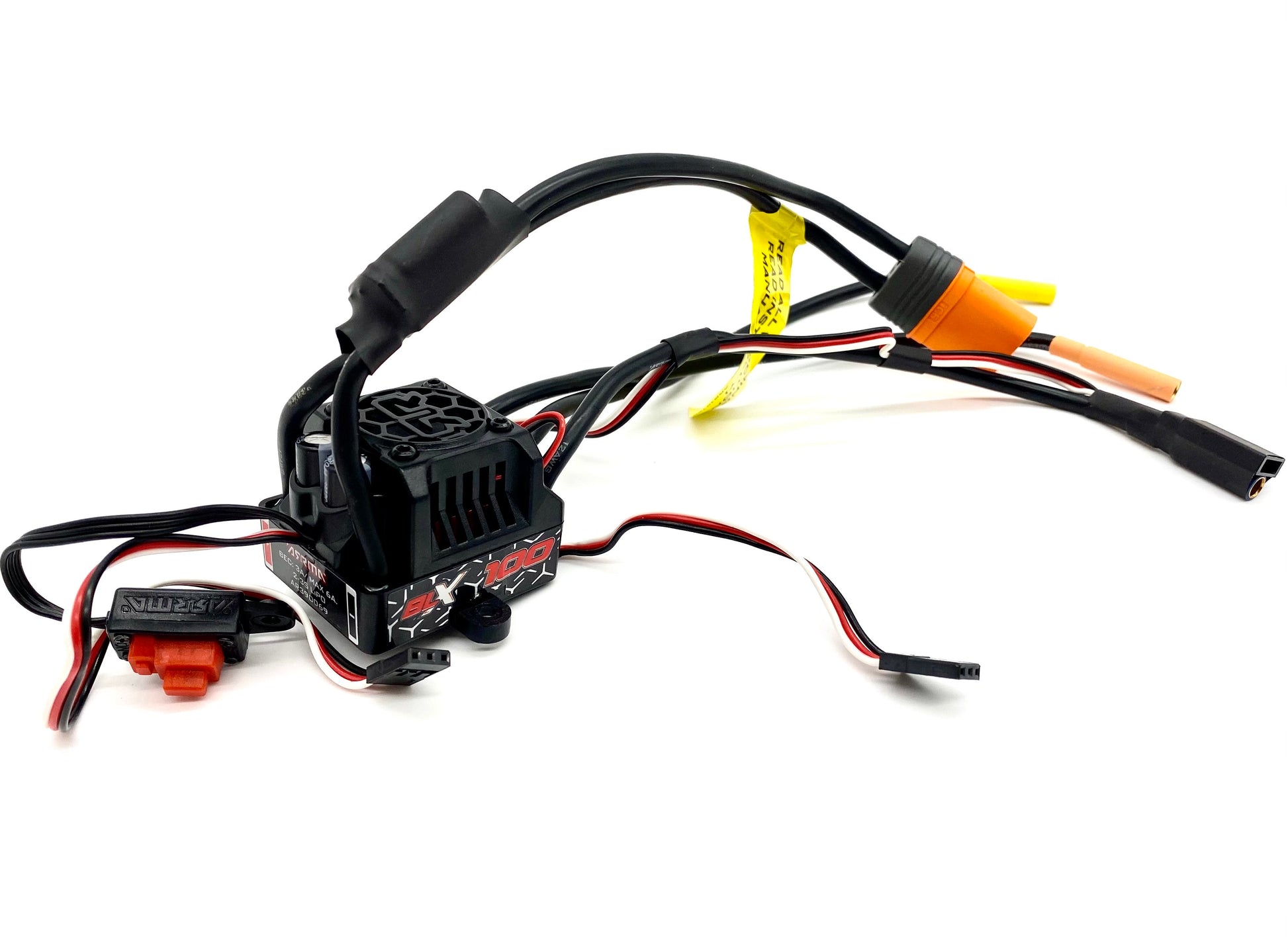

AR390069 - BLX100 100A waterproof ESC is 3S LiPo ready!

SPEC's

Battery usage; 2S LiPo (7.4V) or 3S LiPo (11.1) / 4-9 Cell NiMH
Low Voltage Cut-Off (LVC); 3.4V per cell
Thermal Protection Temperature; 125°C / 257°F
Over-Voltage Protection; Over 12.6V
BEC Voltage; 6V
BEC Current; 4A
ESC Length; 43mm / 1.69"
ESC Height; 34mm / 1.34"
ESC Width; 54.5mm / 2.15" (Including hold-down tabs)
ESC Weight; 120g / 4.2oz
Receiver Wire Length; 170mm / 6.70"
Battery Wire Length; 125mm / 4.92"
Motor Wire Length (Including Connector); 200mm / 7.87"
Switch Length; 110mm / 4.33"
Switch Width; 12.8mm / 0.5"
Switch Height; 18mm / 0.71"
Motor Bullet Connector Size; 4mm / 0.16"
Wire Specifications ; 12AWG
ESC Battery Connector Type; EC5
